Type: Wire Mesh for reinforcement of concrete, welded, with square or rectangular cells
Applications:

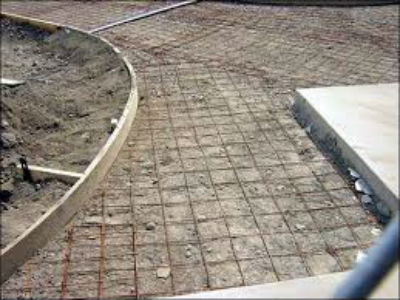

- Construction of walls and floors
- Construction of fencing at non-urban areas, agricultural and pasture lands
Quality:
Wire Mesh sheets are manufactured from wires cold drawn from SAE 1010 AND 1008 wire rod. The diameters of the transverse and longitudinal wires range from 4 mm up to 10 mm.
Packing:
- Length of mesh sheets is 5 m and width from 1,25 up to 2,15 m. Upon request and after agreement, other sizes can also be produced.
- Mesh sheets are binded in bundles of 50 and 100 pieces. Sales per sheet as well.
|
WIRE MESH FOR REINFORCEMENT OF CONCRETE |
||||
|---|---|---|---|---|
|
TYPE |
SHEET DIMENSIONS (m) |
CELL SIZE LONGITUDINAL x TRANSVERSE (mm) |
STEEL WIRE DIAMETER LONGITUDINAL x TRANSVERSE (mm) |
THEORETICAL SHEET WEIGHT (kg) |
|
Ο92 |
5,00 x 2,15 |
150 x 250 |
4,2 x 4,2 |
12,7 |
|
Τ92 |
5,00 x 2,15 |
150 x 150 |
4,2 x 4,2 |
15,7 |
|
Τ92 |
5,00 x 1,55 |
150 x 150 |
4,2 x 4,2 |
11,1 |
|
Τ92 |
5,00 x 1,25 |
150 x 150 |
4,2 x 4,2 |
8,4 |
|
Τ131 |
5,00 x 2,15 |
150 x 150 |
5,0 x 5,0 |
20,6 |
|
Τ139 |
5,00 x 2,15 |
100 x 100 |
4,2 x 4,2 |
23,7 |
|
Τ139 |
5,00 x 1,55 |
100 x 100 |
4,2 x 4,2 |
15,2 |
|
Τ139 |
5,00 x 1,25 |
100 x 100 |
4,2 x 4,2 |
12,6 |
|
Τ188 |
5,00 x 2,15 |
150 x 150 |
6,0 x 6,0 |
31,9 |
|
Τ196 |
5,00 x 2,15 |
100 x 100 |
5,0 x 5,0 |
33,5 |
|
Τ251 |
3,60 x 2,15 |
200 x 200 |
8,0 x 8,0 |
28,9 |
|
Τ393 |
3,60 x 2,15 |
200 x 200 |
10,0 x 10,0 |
45,3 |
UPON REQUEST AND AFTER AGREEMENT, OTHER SIZES CAN ALSO BE PRODUCED
